Paste global variables into the POU header

Copy part or all entries of a global variable list from the GVLs

If an identifier already exists in a global variable list, _copy1, _copy2... will be appended to the existing identifier.

1. Select the lines for the global variables you wish to copy

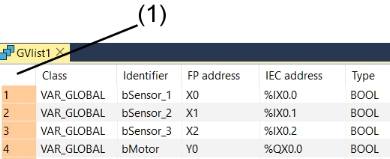

   To select the whole list, click in the gray field (1) at the very top left.


2. Copy and paste the variable list into the header
3. Close both windows and save changes in the header
